PostgreSQL

The PostgreSQL data source connector connects Prisma ORM to a PostgreSQL database server.

By default, the PostgreSQL connector contains a database driver responsible for connecting to your database. You can use a driver adapter (Preview) to connect to your database using a JavaScript database driver from Prisma Client.

Example

To connect to a PostgreSQL database server, you need to configure a datasource block in your Prisma schema:

schema.prisma

datasource db {
  provider = "postgresql"
  url      = env("DATABASE_URL")
}

The fields passed to the datasource block are:

• provider: Specifies the postgresql data source connector.
• url: Specifies the connection URL for the PostgreSQL database server. In this case, an environment variable is used to provide the connection URL.

Using the node-postgres driver

As of v5.4.0, you can use Prisma ORM with database drivers from the JavaScript ecosystem (instead of using Prisma ORM's built-in drivers). You can do this by using a driver adapter.

For PostgreSQL, node-postgres (pg) is one of the most popular drivers in the JavaScript ecosystem. It can be used with any PostgreSQL database that's accessed via TCP.

This section explains how you can use it with Prisma ORM and the @prisma/adapter-pg driver adapter.

1. Enable the driverAdapters Preview feature flag

Since driver adapters are currently in Preview, you need to enable its feature flag on the datasource block in your Prisma schema:

// schema.prisma
generator client {
  provider        = "prisma-client-js"
  previewFeatures = ["driverAdapters"]
}

datasource db {
  provider = "postgresql"
  url      = env("DATABASE_URL")
}

Once you have added the feature flag to your schema, re-generate Prisma Client:

npx prisma generate

2. Install the dependencies

Next, install the pg package and Prisma ORM's driver adapter:

npm install pg
npm install @prisma/adapter-pg

3. Instantiate Prisma Client using the driver adapter

Finally, when you instantiate Prisma Client, you need to pass an instance of Prisma ORM's driver adapter to the PrismaClient constructor:

import { Pool } from 'pg'
import { PrismaPg } from '@prisma/adapter-pg'
import { PrismaClient } from '@prisma/client'

const connectionString = `${process.env.DATABASE_URL}`

const pool = new Pool({ connectionString })
const adapter = new PrismaPg(pool)
const prisma = new PrismaClient({ adapter })

Notice that this code requires the DATABASE_URL environment variable to be set to your PostgreSQL connection string. You can learn more about the connection string below.

Notes

Specifying a PostgreSQL schema

You can specify a PostgreSQL schema by passing in the schema option when instantiating PrismaPg:

const adapter = new PrismaPg(pool, {
  schema: 'myPostgresSchema'
})

Connection details

Connection URL

Prisma ORM follows the connection URL format specified by PostgreSQL's official guidelines, but does not support all arguments and includes additional arguments such as schema. Here's an overview of the components needed for a PostgreSQL connection URL:

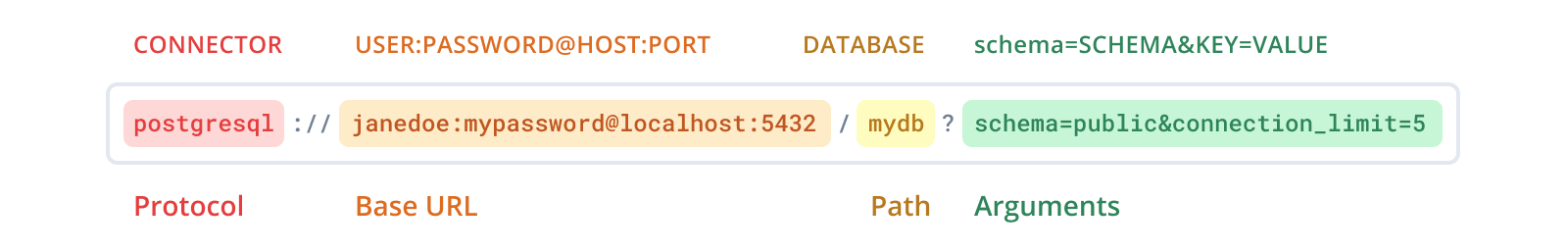

Base URL and path

Here is an example of the structure of the base URL and the path using placeholder values in uppercase letters:

postgresql://USER:PASSWORD@HOST:PORT/DATABASE

The following components make up the base URL of your database, they are always required:

Name	Placeholder	Description
Host	HOST	IP address/domain of your database server, e.g. localhost
Port	PORT	Port on which your database server is running, e.g. 5432
User	USER	Name of your database user, e.g. janedoe
Password	PASSWORD	Password for your database user
Database	DATABASE	Name of the database you want to use, e.g. mydb

info

You must percentage-encode special characters.

Arguments

A connection URL can also take arguments. Here is the same example from above with placeholder values in uppercase letters for three arguments:

postgresql://USER:PASSWORD@HOST:PORT/DATABASE?KEY1=VALUE&KEY2=VALUE&KEY3=VALUE

The following arguments can be used:

Argument name	Required	Default	Description
schema	Yes	public	Name of the schema you want to use, e.g. myschema
connection_limit	No	num_cpus * 2 + 1	Maximum size of the connection pool
connect_timeout	No	5	Maximum number of seconds to wait for a new connection to be opened, 0 means no timeout
pool_timeout	No	10	Maximum number of seconds to wait for a new connection from the pool, 0 means no timeout
sslmode	No	prefer	Configures whether to use TLS. Possible values: prefer, disable, require
sslcert	No		Path of the server certificate. Certificate paths are resolved relative to the ./prisma folder
sslidentity	No		Path to the PKCS12 certificate
sslpassword	No		Password that was used to secure the PKCS12 file
sslaccept	No	accept_invalid_certs	Configures whether to check for missing values in the certificate. Possible values: accept_invalid_certs, strict
host	No		Points to a directory that contains a socket to be used for the connection
socket_timeout	No		Maximum number of seconds to wait until a single query terminates
pgbouncer	No	false	Configure the Engine to enable PgBouncer compatibility mode
statement_cache_size	No	500	Since 2.1.0: Specifies the number of prepared statements cached per connection
application_name	No		Since 3.3.0: Specifies a value for the application_name configuration parameter
channel_binding	No	prefer	Since 4.8.0: Specifies a value for the channel_binding configuration parameter
options	No		Since 3.8.0: Specifies command line options to send to the server at connection start

As an example, if you want to connect to a schema called myschema, set the connection pool size to 5 and configure a timeout for queries of 3 seconds. You can use the following arguments:

postgresql://USER:PASSWORD@HOST:PORT/DATABASE?schema=myschema&connection_limit=5&socket_timeout=3

Configuring an SSL connection

You can add various parameters to the connection URL if your database server uses SSL. Here's an overview of the possible parameters:

• sslmode=(disable|prefer|require):
  • prefer (default): Prefer TLS if possible, accept plain text connections.
  • disable: Do not use TLS.
  • require: Require TLS or fail if not possible.
• sslcert=<PATH>: Path to the server certificate. This is the root certificate used by the database server to sign the client certificate. You need to provide this if the certificate doesn't exist in the trusted certificate store of your system. For Google Cloud this likely is server-ca.pem. Certificate paths are resolved relative to the ./prisma folder
• sslidentity=<PATH>: Path to the PKCS12 certificate database created from client cert and key. This is the SSL identity file in PKCS12 format which you will generate using the client key and client certificate. It combines these two files in a single file and secures them via a password (see next parameter). You can create this file using your client key and client certificate by using the following command (using openssl):

  openssl pkcs12 -export -out client-identity.p12 -inkey client-key.pem -in client-cert.pem
• sslpassword=<PASSWORD>: Password that was used to secure the PKCS12 file. The openssl command listed in the previous step will ask for a password while creating the PKCS12 file, you will need to provide that same exact password here.
• sslaccept=(strict|accept_invalid_certs):
  • strict: Any missing value in the certificate will lead to an error. For Google Cloud, especially if the database doesn't have a domain name, the certificate might miss the domain/IP address, causing an error when connecting.
  • accept_invalid_certs (default): Bypass this check. Be aware of the security consequences of this setting.

Your database connection URL will look similar to this:

postgresql://USER:PASSWORD@HOST:PORT/DATABASE?sslidentity=client-identity.p12&sslpassword=mypassword&sslcert=rootca.cert

Connecting via sockets

To connect to your PostgreSQL database via sockets, you must add a host field as a query parameter to the connection URL (instead of setting it as the host part of the URI). The value of this parameter then must point to the directory that contains the socket, e.g.: postgresql://USER:PASSWORD@localhost/database?host=/var/run/postgresql/

Note that localhost is required, the value itself is ignored and can be anything.

Note: You can find additional context in this GitHub issue.

Type mapping between PostgreSQL and Prisma schema

These two tables show the type mapping between PostgreSQL and Prisma schema. First how Prisma ORM scalar types are translated into PostgreSQL database column types, and then how PostgreSQL database column types relate to Prisma ORM scalar and native types.

Alternatively, see Prisma schema reference for type mappings organized by Prisma type.

Mapping between Prisma ORM scalar types and PostgreSQL database column types

The PostgreSQL connector maps the scalar types from the Prisma ORM data model as follows to database column types:

Prisma ORM	PostgreSQL
String	text
Boolean	boolean
Int	integer
BigInt	bigint
Float	double precision
Decimal	decimal(65,30)
DateTime	timestamp(3)
Json	jsonb
Bytes	bytea

Mapping between PostgreSQL database column types to Prisma ORM scalar and native types

• When introspecting a PostgreSQL database, the database types are mapped to Prisma ORM types according to the following table.
• When creating a migration or prototyping your schema the table is also used - in the other direction.

PostgreSQL (Type | Aliases)	Supported	Prisma ORM	Native database type attribute	Notes
bigint | int8	✔️	BigInt	@db.BigInt*	*Default mapping for BigInt - no type attribute added to schema.
boolean | bool	✔️	Bool	@db.Boolean*	*Default mapping for Bool - no type attribute added to schema.
timestamp with time zone | timestamptz	✔️	DateTime	@db.Timestamptz(x)
time without time zone | time	✔️	DateTime	@db.Time(x)
time with time zone | timetz	✔️	DateTime	@db.Timetz(x)
numeric(p,s) | decimal(p,s)	✔️	Decimal	@db.Decimal(x, y)
real | float, float4	✔️	Float	@db.Real
double precision | float8	✔️	Float	@db.DoublePrecision*	*Default mapping for Float - no type attribute added to schema.
smallint | int2	✔️	Int	@db.SmallInt
integer | int, int4	✔️	Int	@db.Int*	*Default mapping for Int - no type attribute added to schema.
smallserial | serial2	✔️	Int	@db.SmallInt @default(autoincrement())
serial | serial4	✔️	Int	@db.Int @default(autoincrement())
bigserial | serial8	✔️	Int	@db.BigInt @default(autoincrement()
character(n) | char(n)	✔️	String	@db.Char(x)
character varying(n) | varchar(n)	✔️	String	@db.VarChar(x)
money	✔️	Decimal	@db.Money
text	✔️	String	@db.Text*	*Default mapping for String - no type attribute added to schema.
timestamp	✔️	DateTime	@db.TimeStamp*	*Default mapping for DateTime - no type attribute added to schema.
date	✔️	DateTime	@db.Date
enum	✔️	Enum	N/A
inet	✔️	String	@db.Inet
bit(n)	✔️	String	@Bit(x)
bit varying(n)	✔️	String	@VarBit
oid	✔️	Int	@db.Oid
uuid	✔️	String	@db.Uuid
json	✔️	Json	@db.Json
jsonb	✔️	Json	@db.JsonB*	*Default mapping for Json - no type attribute added to schema.
bytea	✔️	Bytes	@db.ByteA*	*Default mapping for Bytes - no type attribute added to schema.
xml	✔️	String	@db.Xml
Array types	✔️	[]
citext	✔️*	String	@db.Citext	* Only available if Citext extension is enabled.
interval	Not yet	Unsupported
cidr	Not yet	Unsupported
macaddr	Not yet	Unsupported
tsvector	Not yet	Unsupported
tsquery	Not yet	Unsupported
int4range	Not yet	Unsupported
int8range	Not yet	Unsupported
numrange	Not yet	Unsupported
tsrange	Not yet	Unsupported
tstzrange	Not yet	Unsupported
daterange	Not yet	Unsupported
point	Not yet	Unsupported
line	Not yet	Unsupported
lseg	Not yet	Unsupported
box	Not yet	Unsupported
path	Not yet	Unsupported
polygon	Not yet	Unsupported
circle	Not yet	Unsupported
Composite types	Not yet	n/a
Domain types	Not yet	n/a

Introspection adds native database types that are not yet supported as Unsupported fields:

schema.prisma

model Device {
  id   Int                   @id @default(autoincrement())
  name String
  data Unsupported("circle")
}

Prepared statement caching

A prepared statement is a feature that can be used to optimize performance. A prepared statement is parsed, compiled, and optimized only once and then can be executed directly multiple times without the overhead of parsing the query again.

By caching prepared statements, Prisma Client's query engine does not repeatedly compile the same query which reduces database CPU usage and query latency.

For example, here is the generated SQL for two different queries made by Prisma Client:

SELECT * FROM user WHERE name = "John";
SELECT * FROM user WHERE name = "Brenda";

The two queries after parameterization will be the same, and the second query can skip the preparing step, saving database CPU and one extra roundtrip to the database. Query after parameterization:

SELECT * FROM user WHERE name = $1

Every database connection maintained by Prisma Client has a separate cache for storing prepared statements. The size of this cache can be tweaked with the statement_cache_size parameter in the connection string. By default, Prisma Client caches 500 statements per connection.

Due to the nature of pgBouncer, if the pgbouncer parameter is set to true, the prepared statement cache is automatically disabled for that connection.
