Using the expand and contract pattern for schema changes

Introduction

Database schema designs inevitably evolve over time as the software that interacts with the database change. It is important to be able to transition your schemas to incorporate new requirements as they arise in a safe and reliable manner.

While database migration software can often be used to update the actual data structures, the data itself must also be converted to new formats, migrated to different tables or columns, and updated to conform to new expectations. These processes, while not always complicated, are especially sensitive when performed on live systems that are actively being used by clients.

Fortunately, a multi-step process known as the expand and contract pattern can be applied to safely migrate clients to use new data structures incrementally without taking the system offline. In this guide, we will explore what the expand and contract pattern is, how it enables seamless transitions between new and old structures, and how to apply it to various database transformations.

What is the expand and contract pattern?

The expand and contract pattern is a process that database administrators and software developers can use to transition data from an old data structure to a new data structure without affecting uptime. It works by applying changes through a series of discrete steps designed to introduce the new structure in the background, prepare the data for live usage, and then switch over to the new structure seamlessly.

This process can be used to make changes to many in-use interfaces, but it is especially helpful for database schema changes. Beyond just migrating data and clients to a new data structure, the expand and contract pattern is also helpful in that it allows you to rollback changes easily at most points in the process if something doesn't go as planned or if your requirements change.

How to use the expand and contract pattern

In this section, we'll outline how you actually use the expand and contract pattern and what it is able to achieve. The individual steps involve coordination between the client applications and the schemas being used within the database. It is important to understand both the purpose of each step as well as the reason why it should be applied independently of its siblings.

Note: The order in which you execute steps 2 and 3 depends on your requirements, design, and preferences. Many times, it is appropriate to expand the client interface prior to migrating data, but it can be useful to migrate the data before altering any client behavior in some cases.

Example of the expand and contract pattern

To better illustrate how you can use the expand and contract pattern to implement changes to your data schema, migrate your data, and reconfigure clients without downtime, we'll demonstrate how to apply this strategy in an example.

Imagine you have a table called equipment that is used to catalog playground equipment used throughout a park district. The table has the following columns:

 Table equipment
 ---------------
 id INT
 item_type STRING
 installed_on DATETIME
 city STRING
 park STRING
 playground INT

Currently, the equipment table tracks where a piece of equipment is installed through the city, park, and playground columns (with the playground column being used to specify the exact playground when a park has multiple playgrounds). However, it becomes apparent that this information is better tracked in a separate table. The new design calls for a table that looks like this:

 Table equipment
 ---------------
 id INT
 item_type STRING
 installed_on DATETIME
 playground INT FOREIGN KEY (playground.id)


 Table playground
 ----------------
 id INT
 city STRING
 park STRING
 sq_ft INT

To implement this change, the team creates a new playground table to house the information related to a specific playground within a specific park. This will hold all information related to a playground to keep it separate from the information related to equipment.

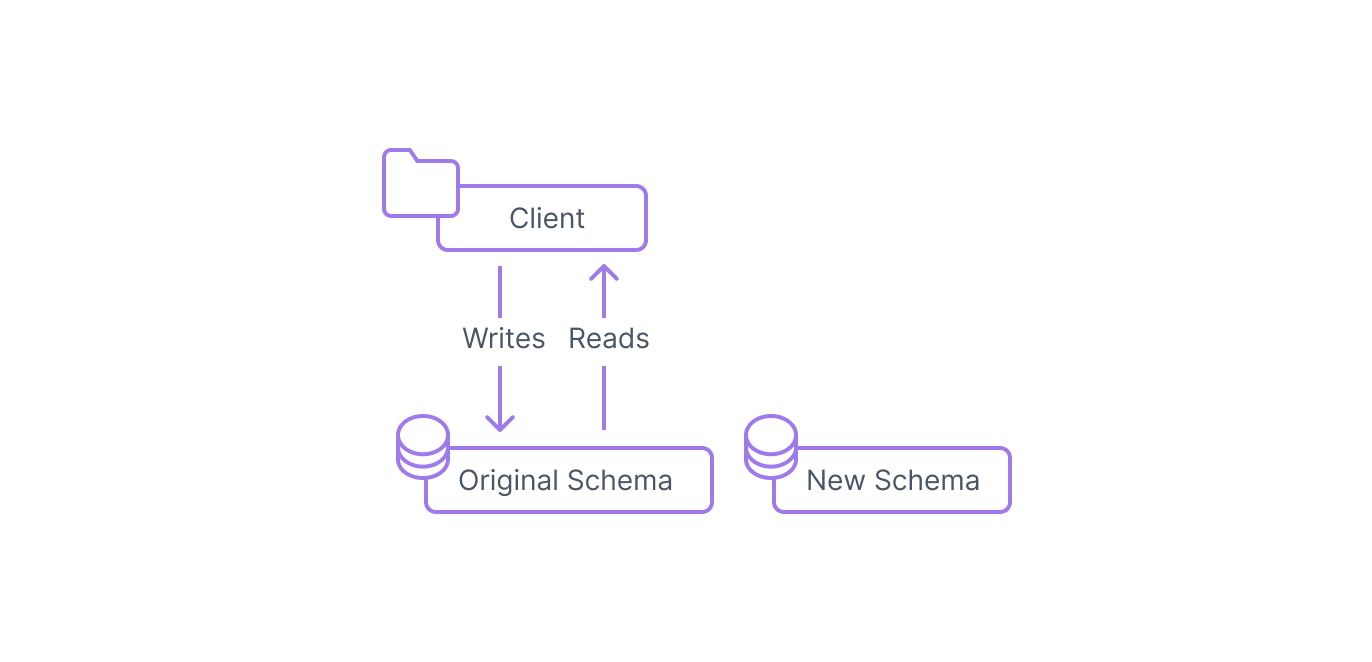

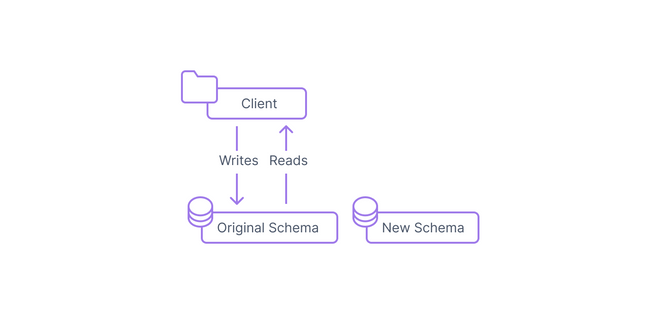

The first step the team takes is to create the new playground table beside the original equipment table:

 Table equipment
 ---------------
 id INT
 item_type STRING
 installed_on DATETIME
 city STRING
 park STRING
 playground INT


 Table playground
 ----------------
 id INT
 city STRING
 park STRING
 sq_ft INT

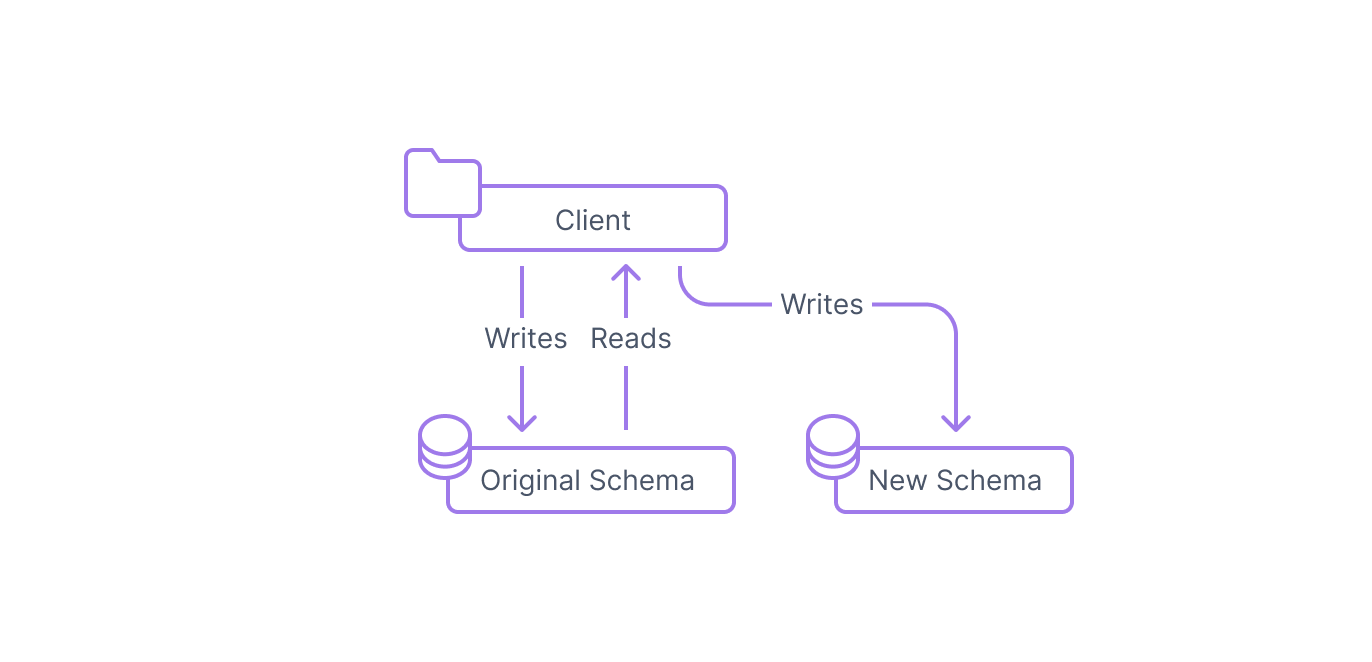

Next, the client application is updated to write any new playground-related data to both the equipment table and the playground table by configuring the application to write to all tables returned by the feature flag DATABASE:equipment_location:write defined as a list on their Redis server. While they are adding this change, they also implement another feature flag that checks the value of DATABASE:equipment_location:read to determine which data source to read from.

After the change to the client code, the most recent two records are recorded in both locations:

Table equipment:

Table playground:

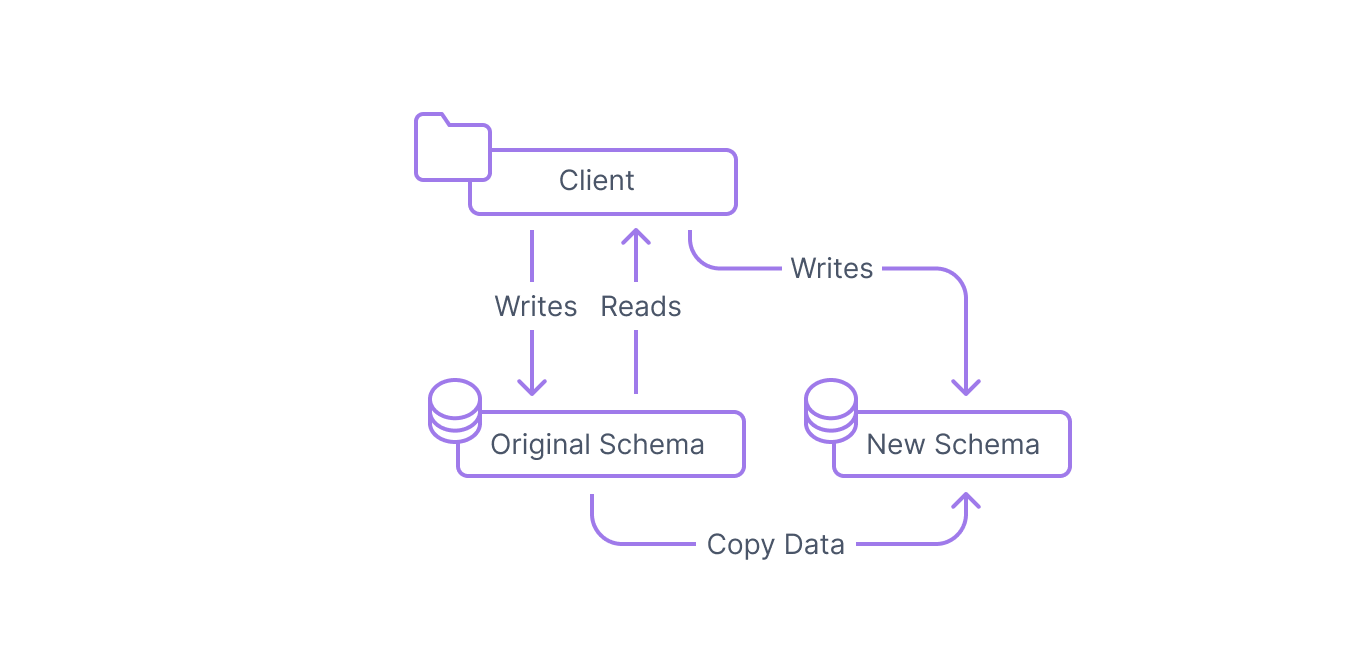

Since all new data is being recorded to both locations, the team can focus on migrating the older data to the new structure. They develop a script that pulls the existing records from the equipment table to populate the playground table. The script additionally references an external source to fill in the size of each park in square feet. The result looks something like this:

Table equipment:

Table playground:

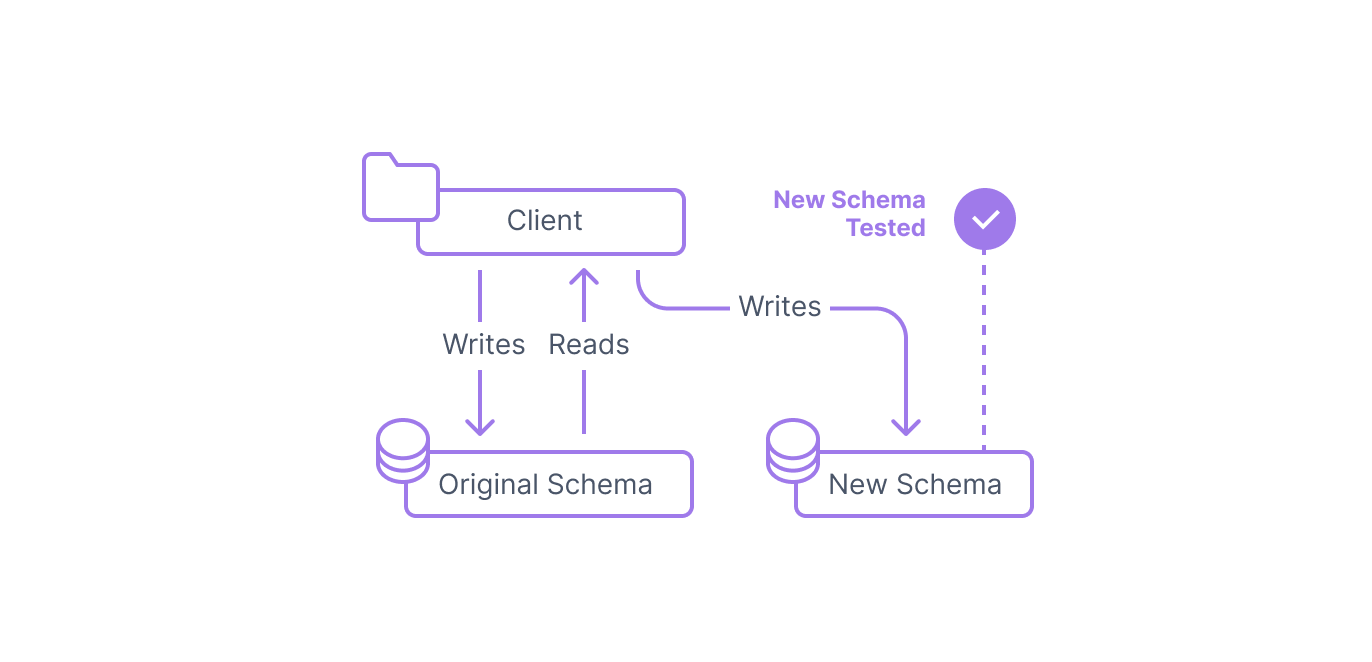

Both tables are now up-to-date. It is important to note, however, that the new playground table does contain information not stored in the equipment table (the sq_ft column). If you were to roll back changes at this point, you would be able to return to your previous table state, but you would lose the data that's been captured for each playground's size.

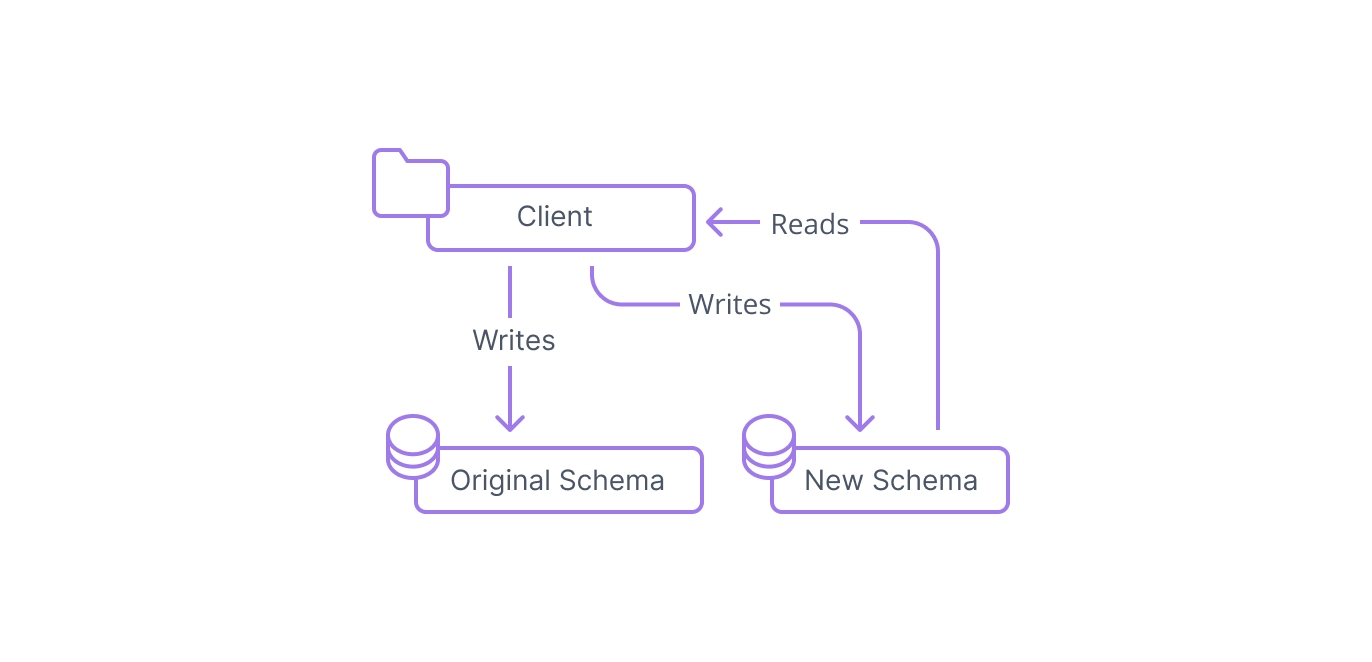

When they are ready, the team changes the value of the DATABASE:equipment_location:read variable on their Redis server to point to get location information from the new playground table. Their client application begins reading only the equipment-related information from the equipment table. It uses the new playground table to pull all location information.

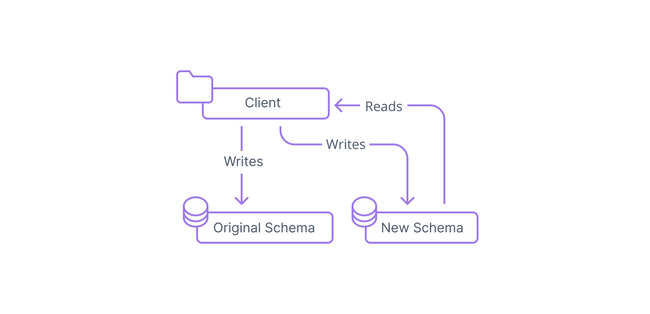

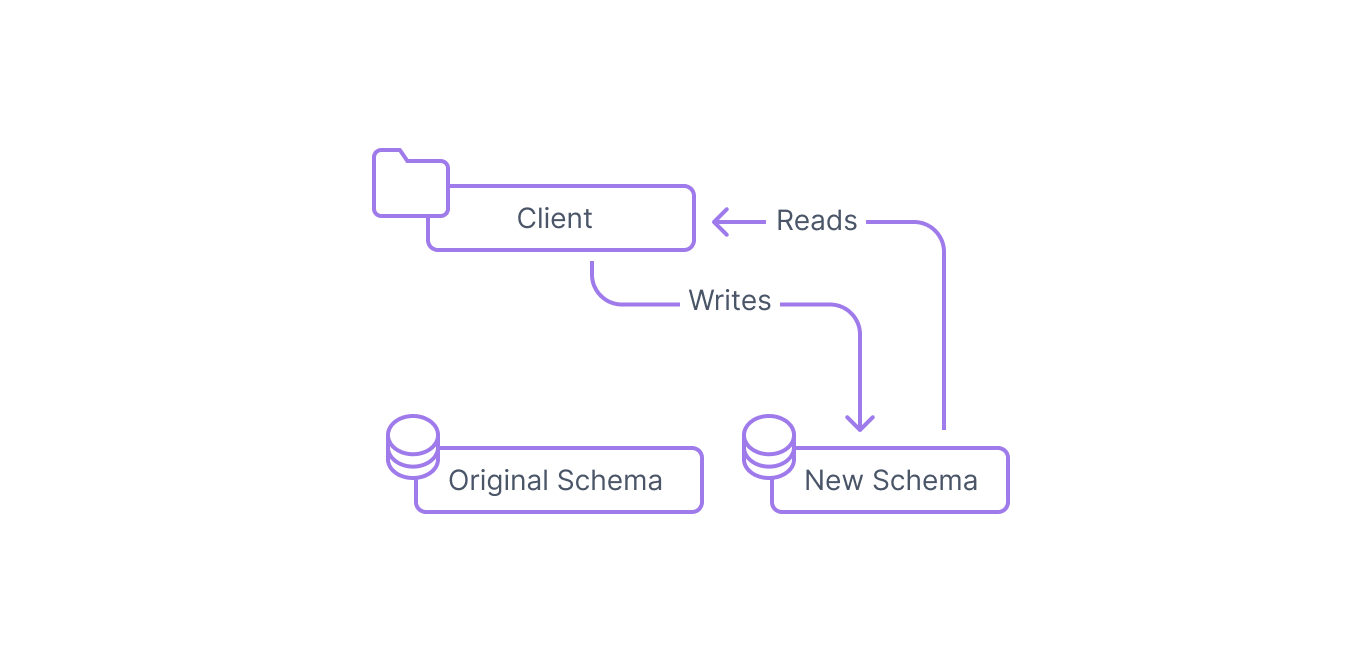

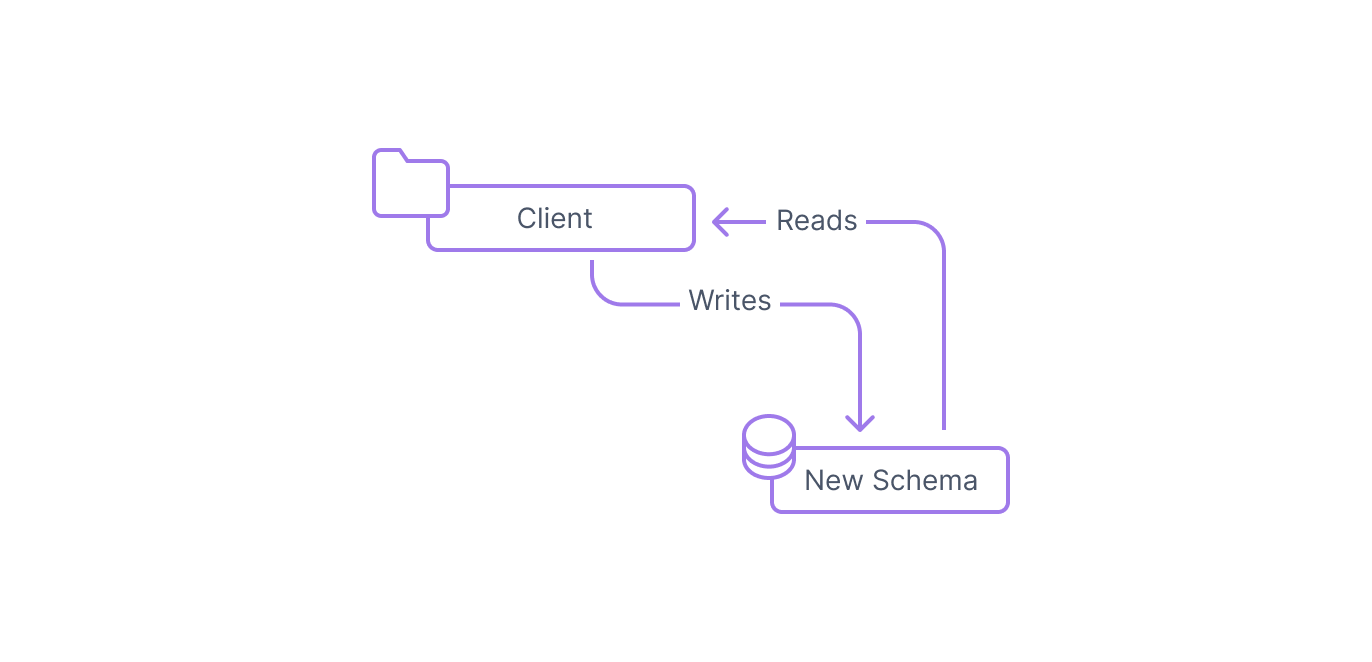

Once they are confident that everything is working correctly, they can modify the DATABASE:equipment_location:write variable to remove the equipment table from the list of write targets. Finally, they can remove the legacy columns from the equipment table to clean up their schema and complete their work:

Table equipment:

Table playground:

Conclusion

In this guide, we discussed how the expand and contract pattern can be used as part of your toolkit to safely transition your database and its data to a new schema. We took a look at how the pattern works and what advantages it provides. Finally, we finished with an example to demonstrate how a database change may work in the real world.

The ideas presented in this guide are not unique, but they are powerful ways to systematically transition your database and its data while actively serving client requests. By implementing these strategies with careful thought, you can avoid many common problems and often achieve uninterrupted service for your clients.
